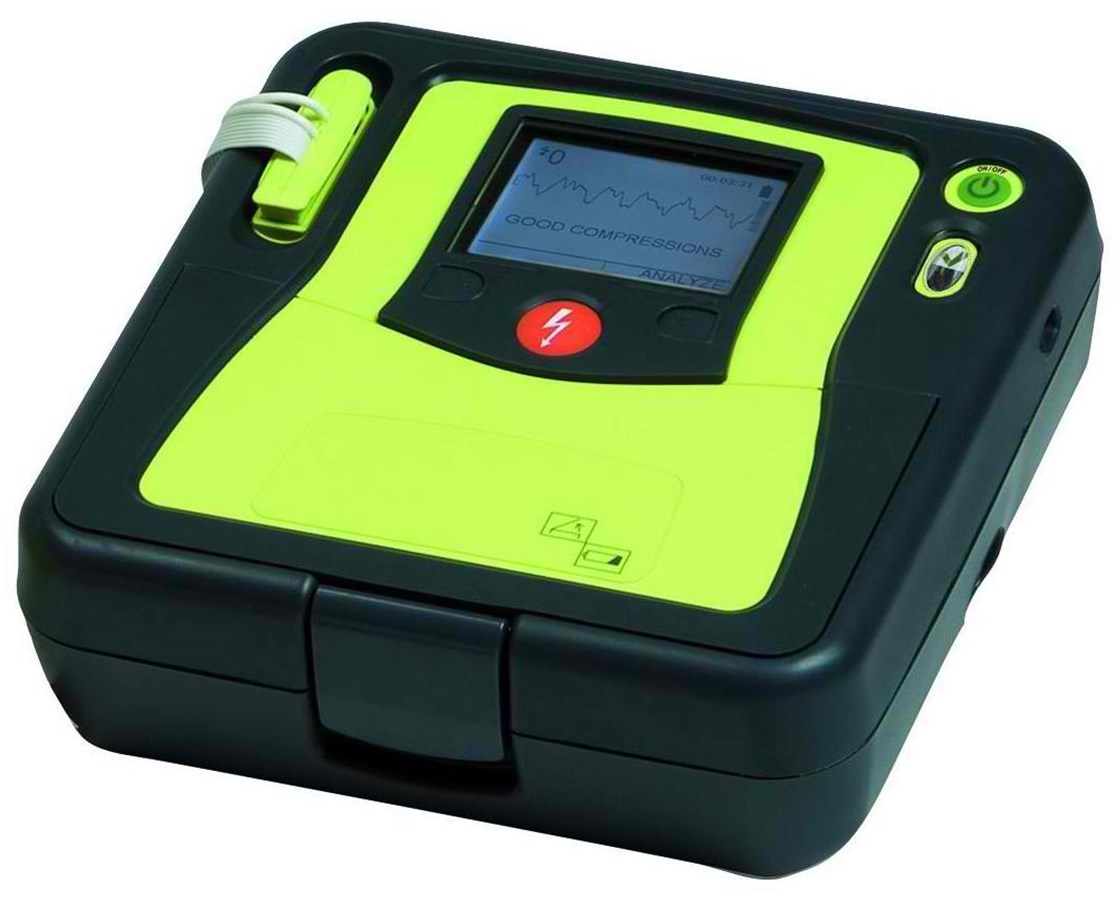

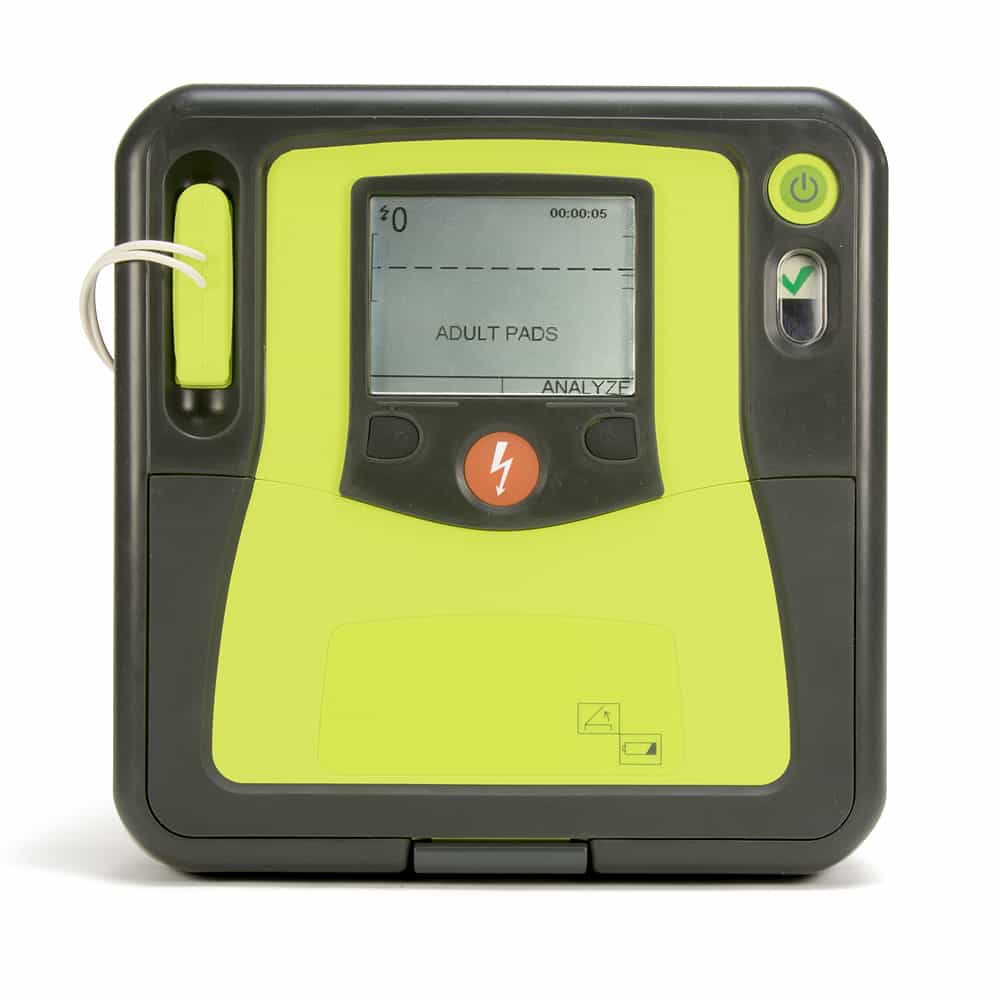

Zoll AED Pro

Uninterrupted, High-quality CPR

The American Heart Association and the European Resuscitation Council emphasize the importance
of CPR feedback. “CPR quality measurement is needed to provide timely feedback to the responding
providers.”The ZOLL AED Pro provides the feedback both the professional and the lay rescuer need
to perform optimal CPR.

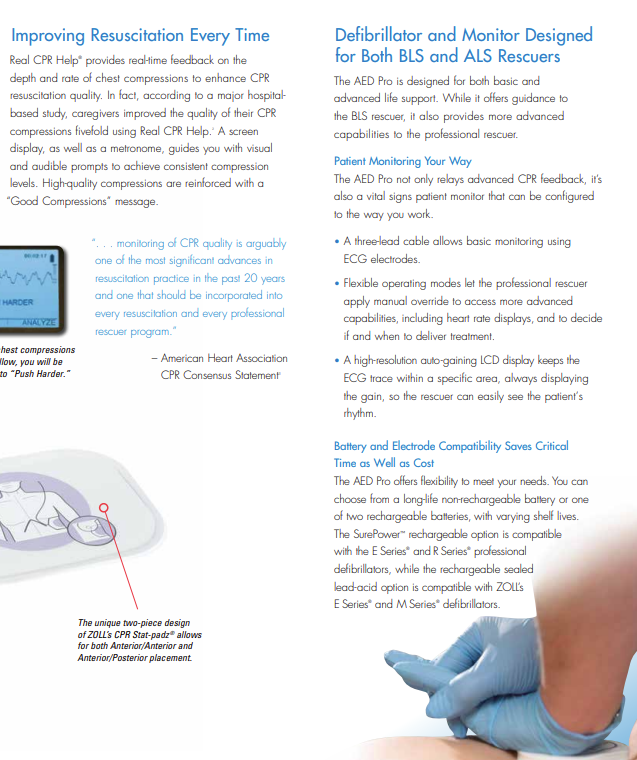

The AED Pro Monitor/Defibrillator is designed for both basic and advanced life support. While it offers guidance to the BLS rescuer, it also provides more advanced capabilities for the professional rescuer. This Semi-Auto/Manual model provides for both Semi-Automatic and Manual use of the unit.

The AED Pro Defibrillator is compatible with CPR-D-padz, CPR Stat-Padz, Pedi-Padz II, and Stat-Padz II (all ordered separately), and has battery compatibility with Zoll E Series, M Series, and R Series professional defibrillators. The AED Pro is designed for harsh environments, and is made to withstand dust and water while still remaining portable and functional for critical situations. Capabilities of the Zoll AED Pro span from Basic to Advanced Life Support with the flexibility of 3-lead cable patient monitoring. Batteries (#8000-0860-01) and electrodes are not included.

Zoll AED Pro Semi-Automatic/Manual Defibrillator Features

• Real CRP Help Technology: For depth and rate of chest compressions.
• See-Thru CPR Technology: That allows rescuer to view victims underlying ECG rhythm while performing CPR.
• Three-lead patient monitoring and manual override for monitoring, analyzing, and delivering treatment with flexibility.
• Protection against dust and water with IP55 rating, and passes the 1.5 meter drop test.
• Rubber Over-molds build to withstand harsh environments.
• Built-in multi-patient internal memory and external USB memory.
• 20 minutes of ECG, operator, and device actions with audio recording enabled.
• Four patient records up to 1.45 hours each.
• 5.8 hours for a single record of ECG and event data without audio recording.
• Intelligent Pediatric Capability.
• Back-lit, high-resolution LCD display.
• IrDA port.

Immediate and Customizable Data Storage and Transfer

Configurable Storage for Maximum Flexibility
With storage capability for up to 5.8 hours of complete
event data, the AED Pro can be configured to document
as many as four rescues. Rescuers can pre-configure the
AED to hold between one and four events depending on
their established protocol. This flexibility allows the AED
to remain in the field longer, maximizing productivity
and reducing costs.

Expanded USB Storage and Transfer
The AED Pro is the first and only AED with USB storage
and transfer capability. This capacity offers you
immediate data transfer, without removing the AED from
the field. The AED also allows transfer with a wireless
connection. In addition, it affords extended storage on
USB drives.

Integrated, Full-view Data Collection
The AED Pro is compatible with ZOLL’s range
of RescueNet®
field data collection options,
including RescueNet Code Review and RescueNet
CaseReview. Designed to improve efficiency and
quality of care, these products collect the full patient
record and all resuscitation event data in one place.
And at-a-glance dashboards display CPR metrics in
a clear, concise format.

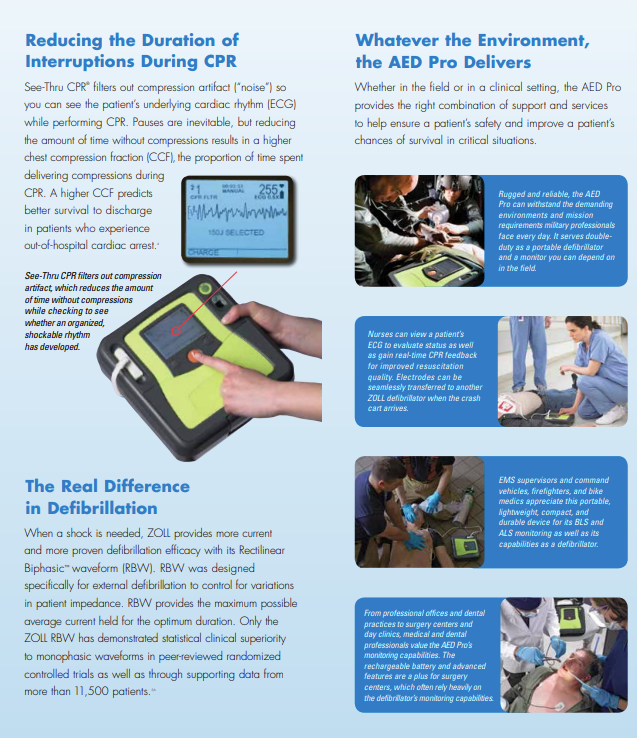

Dependable in Every Situation
Military organizations worldwide rely on the AED
Pro in deployed combat situations, domestic military
training, and basic medical transport. The AED Pro
A-W (Airworthy) is approved for use onboard military
aircraft. Specifically designed for forward-operating
military units, it is USAARL-approved for use in all rotarywing aircraft in combat situations.
The AED Pro and AED Pro A-W both pass the 1.5-meter
drop test and are the only AEDs with an IP55 dust-water
ingress rating. The AED Pro is extremely rugged, impact
resistant, and temperature tolerant because it’s made
from polycarbonate siloxane resin, the same material
used in professional sports helmets.
