Supporting every rescue with advanced technology, including:

• Five-year battery and electrodes for fewer replacements, improved readiness, and the benefit of a low total cost of ownership
• CPR-D-padz^®  or CPR Stat-padz^® for adult patients; Pedi-padz^® II for pediatric patients

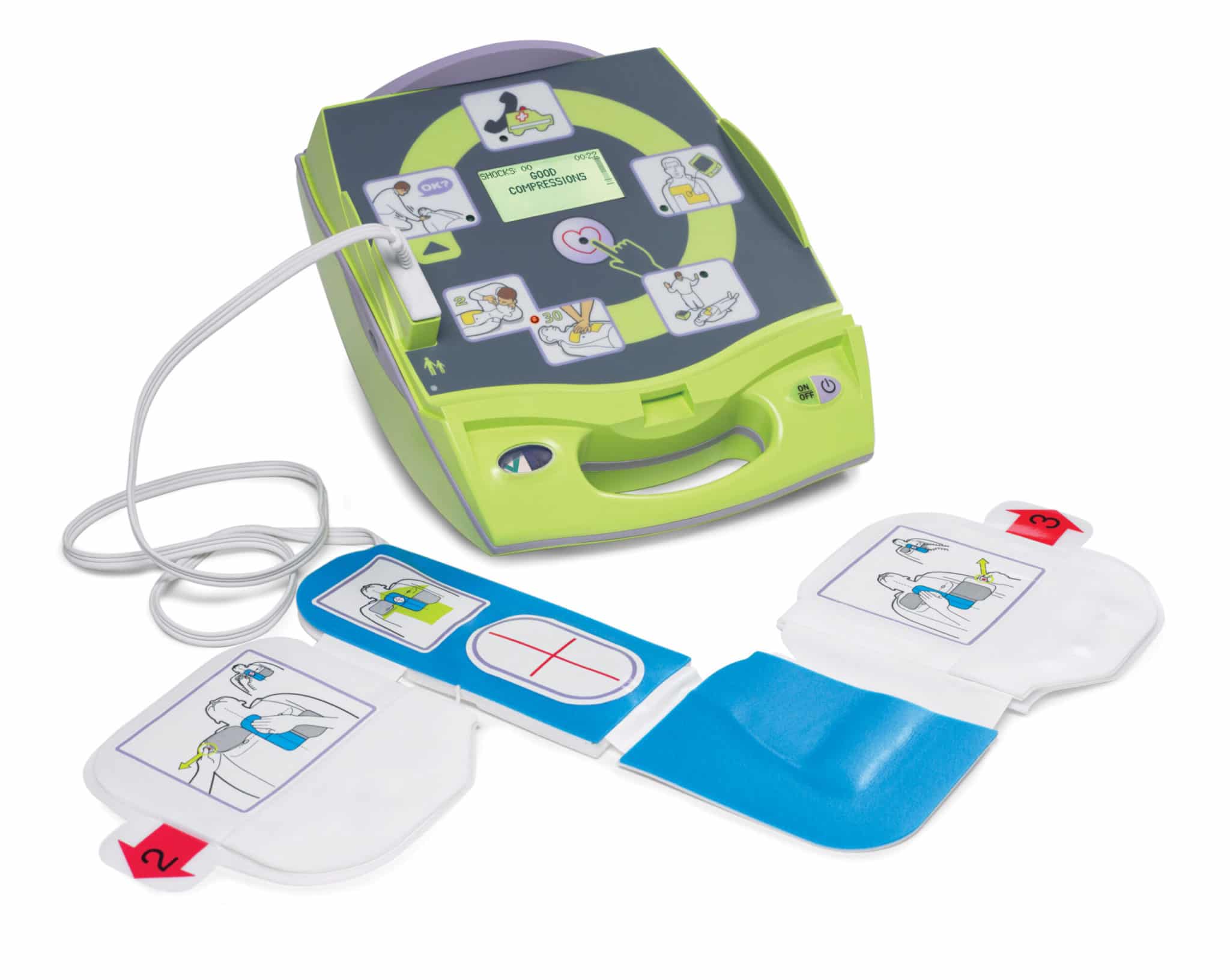

The AED Plus features an LCD screen display which is configured with Real CPR Help and See-Thru CPR technology that allows the rescuer to see depth and rate of compression as well as monitor underlying ECG rhythm while performing CPR. The included CPR-D-padz contain a pair of electrodes that sense and report the motion of victim chest compressions to the AED Plus and helps the rescuer understand what needs to be done as the AED Plus reports voice rescue prompts and text.

The AED Plus responds to the rescuer's compressions and guides the rescuer through CPR with Real CPR Help. It evaluates compressions and prompts: "START CPR," "CONTINUE CPR," "PUSH HARDER," "GOOD COMPRESSIONS," and also uses an adaptive metronome to speed you up. No other AED can see the rescuers' chest compressions and guide them to the required depth and rate; the AED is capable of letting the rescuer know when to begin CPR, and allows the rescuer to receive real-time depth and rate CPR feedback. A sensor in the pads that attaches to the patient lets the AED see each chest compression, then it guides you, with prompts and a real-time bar gauge, to the recommended depth and rate of compressions.

The Zoll AED Plus Series defibrillators are the only defibrillators on the market that give feedback on both depth and rate of compressions as recommended by the AHA, and the only defibrillators sold with electrodes and batteries that have a 5-year shelf life. The Zoll AED Plus provides feedback to "PUSH HARDER" and "CONTINUE CPR" if the required depth of 2" - 2.4" and the rate of 100 compressions per minute are not met. It also administers self checks weekly, and will indicate readiness with a green checkmark near the unit's handle so you can be certain of its ability to rescue.

The cost of maintaining these AEDs is kept low by the long shelf life of Zoll's electrodes and batteries. The batteries are standard lithium 123 batteries that may be purchased at a local hardware store, or online. There is no need to special order batteries for this machine, buy them when needed without having to special order.

To ensure you get the most out of owning this Zoll AED, a representative of Zoll will visit your site upon delivery and walk you through all of its components, its use, and long term care.

The Zoll AED Plus is also compatible with Zoll CPR Stat-Padz, Stat-Padz II, and Pedi-padz II (all sold separately) for various rescue ages and settings.

Zoll AED Plus Defibrillator Package Features

• Depth: 3/4 to 3.5" (1.9 to 8.9 cm).
• CPR Metronome Rate: Variable 60 to 100 CPM.
• Size: 5.25" (H) x 9.5" (W) x 11.5" (D).
• Weight 6.7 lb (3.1 kg).
• Power: User-replaceable batteries.
• Real CPR Help Technology for depth and rate of chest compressions.
• Defibrillator Charge Hold Time: 30 seconds.
• Patient Safety: All patient connections electrically isolated.
• Charge Time: Less than 10 hours.
• Operating Temperature: 32 to 122 °F.
• Storage Temperature: -22 to 140 °F.
• Intelligent Pediatric capability.
• IrDA port for communication with device.
• LCD Screen Displays and Prompts:
  • Voice prompt messages.
  • Device advisory messages.
  • Elapsed time.
  • Shock Count and Chest Compression graph.
• CPR-D-padz:
  • Shelf Life: 5 Years.
  • Conductive Gel: Polymer Hydrogel.
  • Conductive Element: Tin.
  • Impedance Class: Low.
  • Cable Length: 48".
  • Enables Real CPR Help: Provides real-time depth and rate CPR feedback.
  • Enables See Thru CPR: Filters out compression artifact in ECG monitor and provides visual of any underlined rhythm development.
  • Simple one-piece design for proper positioning on chest.
  • One size fits all, with ability to expand for larger chest.

Be prepared with a ZOLL AED as your rescue partner.

Every sudden cardiac arrest victim will need high-quality CPR

• The AED Plus with Real CPR Help will give you integrated, real-time feedback to help you
deliver the best possible CPR

Time is of the essence

• One-piece electrode design makes applying pads simple, fast, and accurate

Invest in the ability to help save a life

• A low total cost of ownership and batteries and pads that last five years mean you will be
ready to help in a heartbeat
