Product Description
Pedigo IV Stand

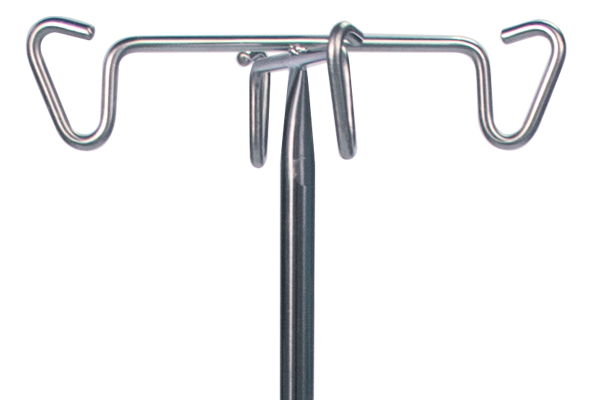

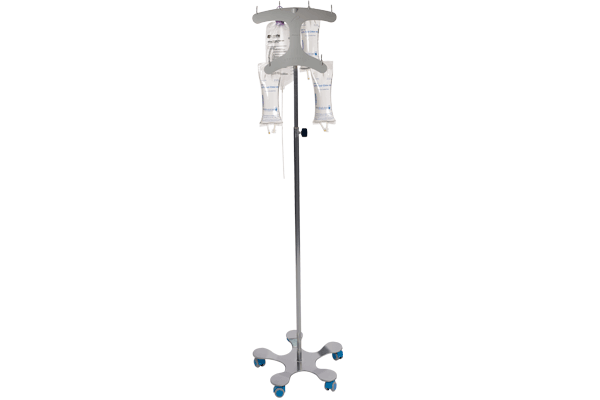

P-1572 Series
- P-1572-4

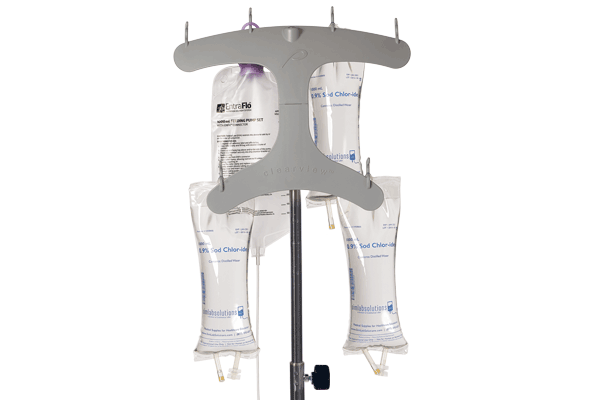

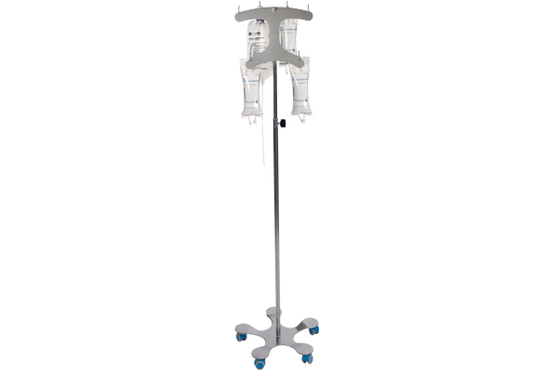

- P-1572-CV
- Stainless steel
- Hand operated, friction lock height adjustment

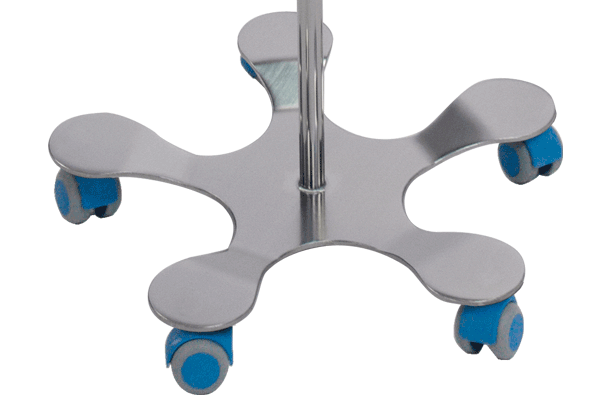

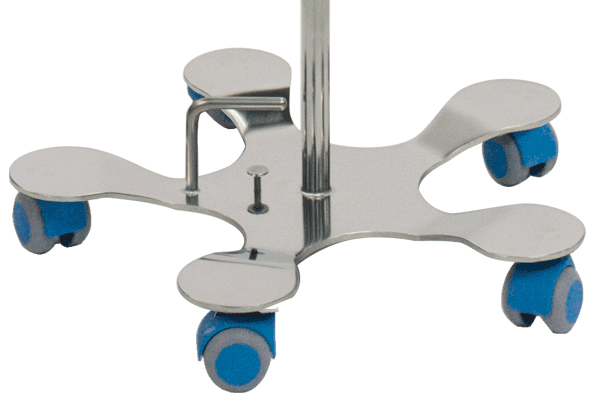

- Five leg base
- 70 lbs. overall weight capacity

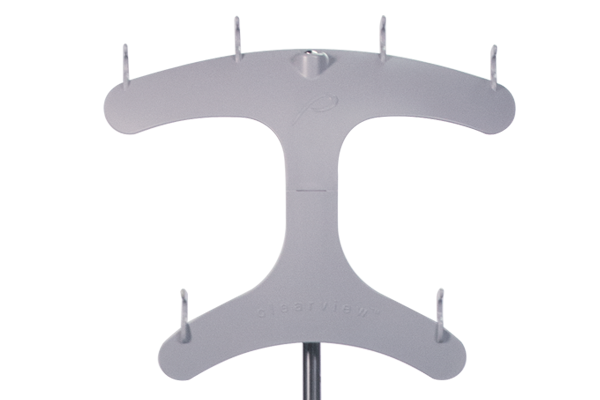

- 7 lbs. per hook (recommended 30 lbs. max. evenly distributed on top hooks for stability)
- Heavy, tip-resistant, all welded design
- Tube: O.D. = 1” I.D. = ¾”
- 2" dual wheel swivel casters for increased mobility
- 70” to 118” height adjustment
- 21” or 21½” base (footprint) on stands
- Easy to clean surfaces
- Safe Load Capacity
- For stability, a safe load on a Pedigo I.V. pole should not exceed 70 lbs. to one side and needs to be within 6” of base tube center line.

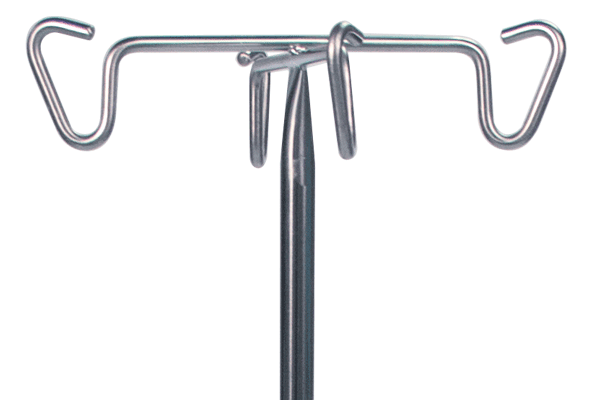

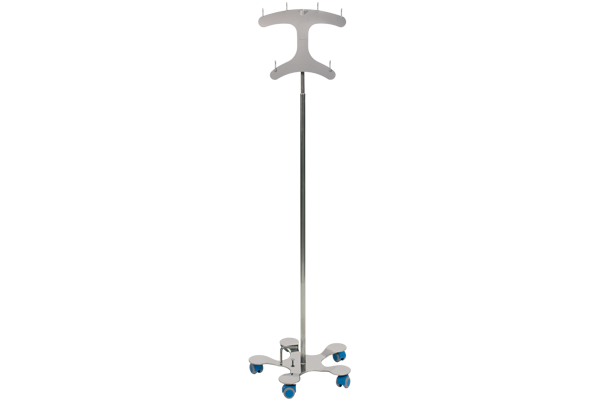

P-1576 Series
- P-1576-4
- P-1574-CV
- Stainless steel
- Quick and easy one-hand foot pedal height adjustment
- 70 lbs. overall weight capacity
- 10 lbs. per hook (recommended 30 lbs. max. evenly distributed on top hooks for stability)
- Heavy, tip-resistant, all welded design
- Tube: O.D. = 1” I.D. = ¾”
- 2” swivel casters for easy mobility
- 70” to 118” height adjustment
- 21” or 21½” base (footprint) on stands
- Easy to clean surfaces
- Safe Load Capacity
- For stability, a safe load on a Pedigo I.V. pole should not exceed 40 lbs. to one side and needs to be within 6” of base tube center line.
Available Options
Pedigo Wire Basket
- P-3201 Wire Basket Large Stainless Steel 14-1/2"W x 8"D x 8"H, Includes Clamp.
- P-3202 Wire Basket Large Black 14-1/2"W x 8"D x 8"H, Includes Clamp.
- P-3211 Wire Basket Med Stainless Steel 12"W x 6"D x 6"H, Includes Clamp.
- P-3212 Wire Basket Med Black 12"W x 6"D x 6"H, Includes Clamp.

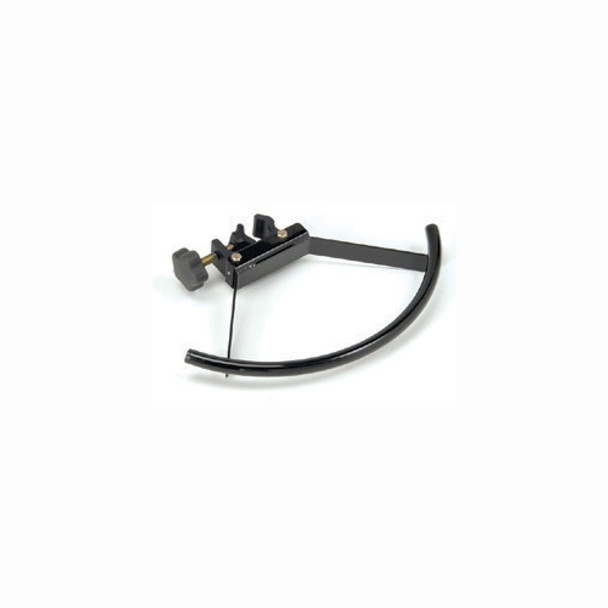

Patient Handle
- P-3305 Patient Handle, Stainless Steel, Includes P-3500 Mounting Clamp and Buttons for Snap-In P-3305-T Tray (Sold Separately). For All Pedigo IV Stands.
- P-3306 Patient Handle, CuVerro Bactericidal Copper Alloy. Includes P-3500 Mounting Clamp and Buttons for Snap-in P3305-T Tray (Sold Separately). For All Pedigo IV Stands.
- P-3307 Patient Handle, CRS - Black, Includes P-3500 Mounting Clamp and Buttons for Snap-in P3500-T Tray (Sold Separately). For All Pedigo IV Stands.
Snap-In Tray
P-3305-T Tray, Snap-In. For P-3305, P-3306, P-3307 Patient Handles. Black ABS Plastic.

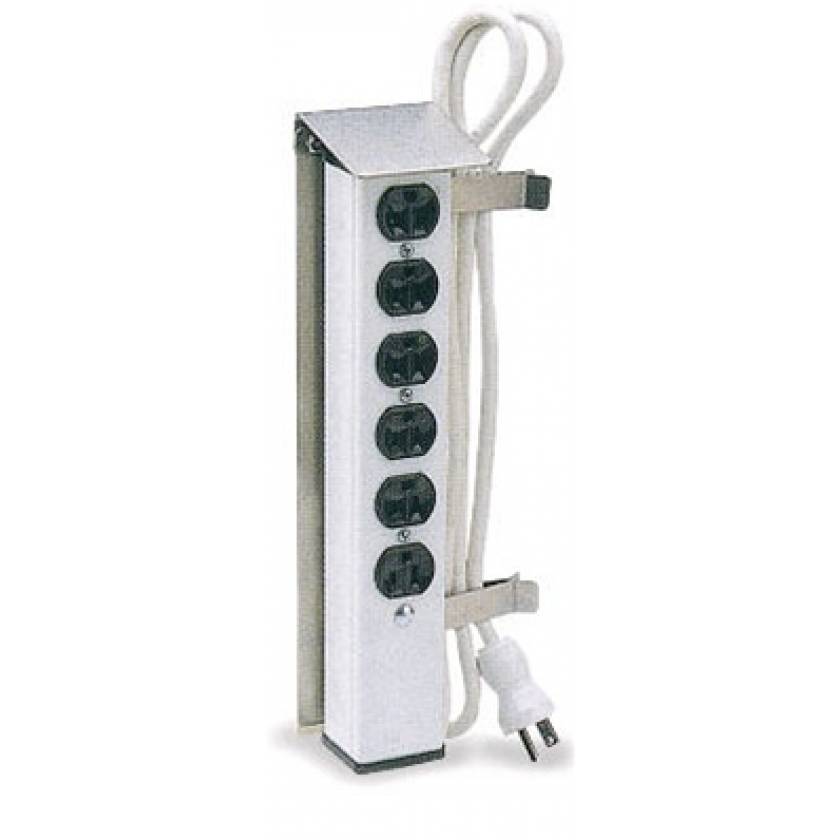

Outlet Strip
P-3401 Hospital Grade Six Outlet Strip

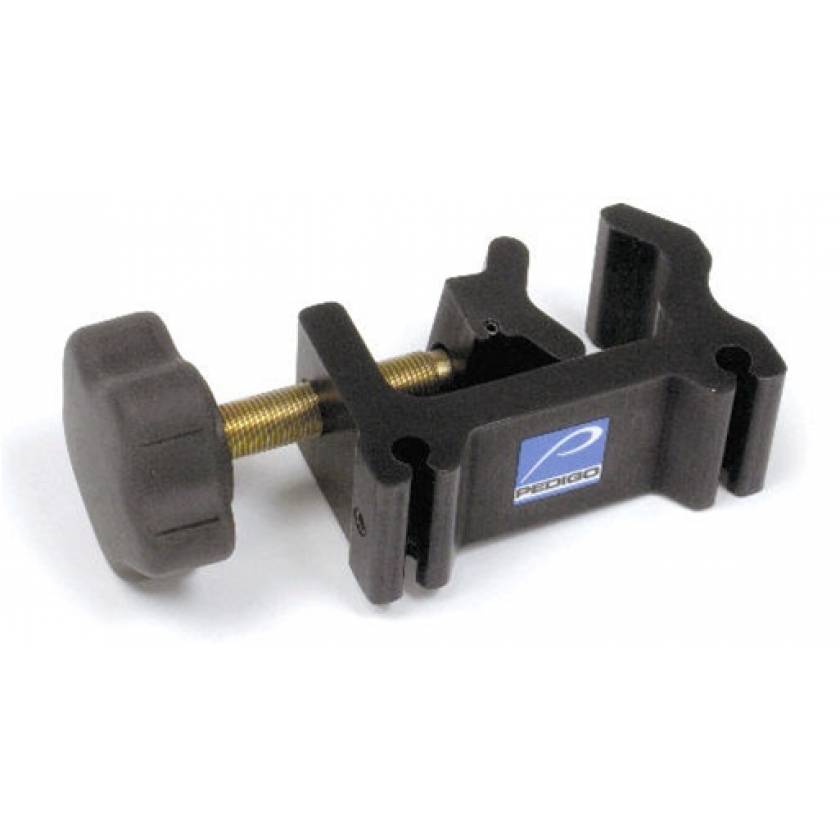

Universal Accessory Clamp
P-3500 Infusion Pump Universal clamp required for mounting all Infusion Pump accessories. Allow for quick and easy adding or removing of accessories.

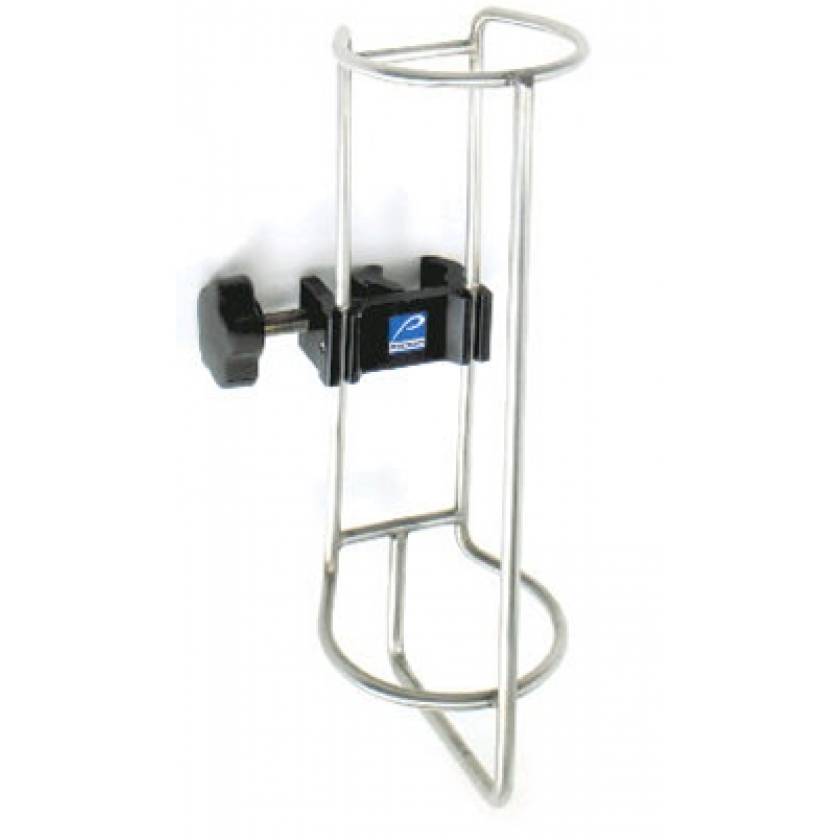

Oxygen Holder
P-3601 Stainless Steel O2 HOLDER Holds E-size Oxygen Tanks
