Product Description

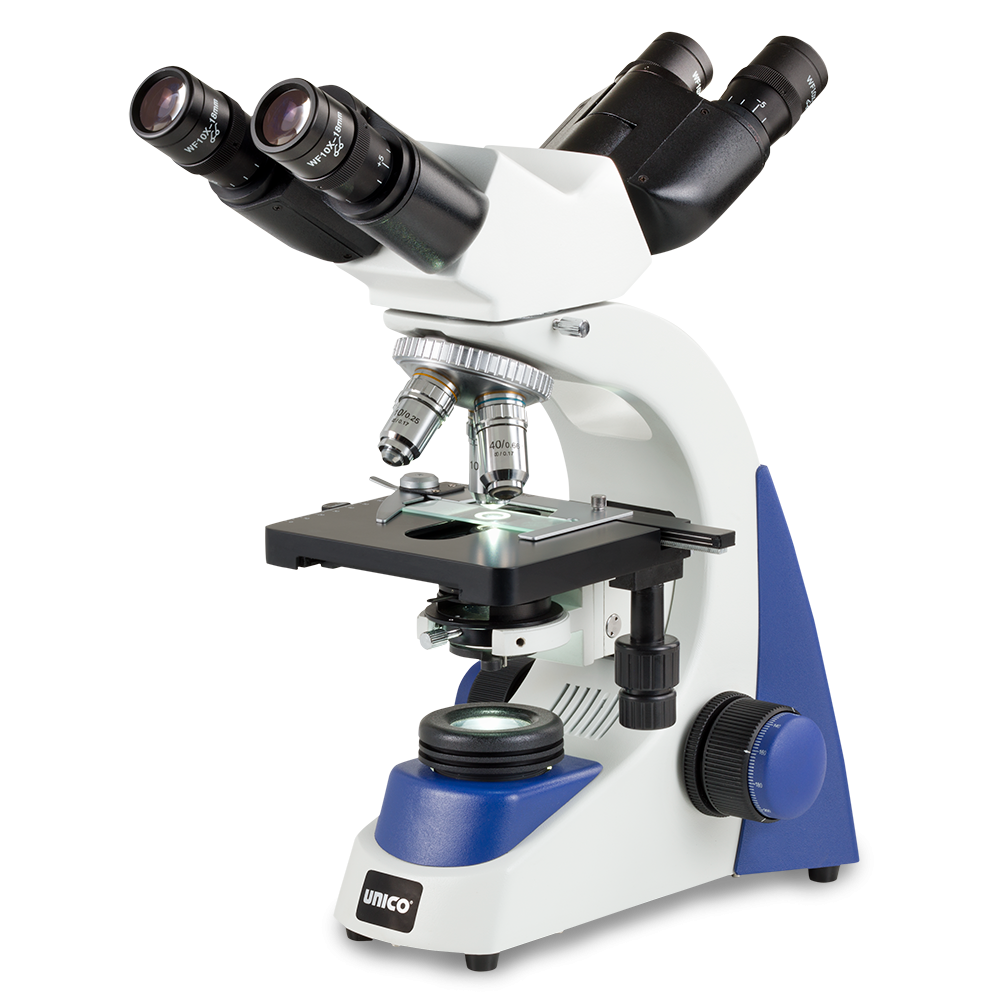

Infinity Microscope
The G380 Infinity Series combines state of the art design and features with the latest optical coating technologies for crisp, clear imaging on a versatile and ergonomic platform. All models in the G380 series feature "High-Eyepoint" 10x widefield eyepieces. This unique design allows users wearing glasses to comfortably view through the scope without removing their glasses as they would have to with traditional eyepieces.
Available with your choice of Binocular, or Dual Binocular teaching heads, all of which rotate 360°.
Select from standard Infinity Achromat or flat-field Infinity Plan achromat objectives.Includes a focusable 1.25 NA Abbe condenser with Iris Diaphragm, oversized graduated coaxial coarse and fine focus controls, swing-out filter holder and a port to allow insertion of a Phase Annulus for Phase microscopy. A ballbearing movement mechanical stage is also standard with low position coaxial controls. Features an integrated dual voltage transformer (110V and 220V) and a detachable power cord so you can use this scope anywhere in the world.
- DUAL SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- 4X,10X,40XR,100XR DIN INFINITY ACHROMAT OBJECTIVES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION
| Head | Dual-Binocular |
| Eyepiece | 10X WF(4)Hi-EP |
| Objectives | 4,10,40,100X Infinity Achromat |
| Condenser | NA 1.25 |
| Diaphragm | Iris |
| Stage | Mechanical |
| Illumination | 3 Watt LED |
| Focusing | Coaxial |
| Size | 9.5 in x 7.5 in x 16 in (240 mm x 190 mm x 410 mm) |
| Shipping Size | 13.5 in x 10.5 in x 17.5 in (340 mm x 260 mm x 440 mm) |
| Weight | 14 lbs (6.4 kg) |
| Shipping Weight | 18 lbs (8.2 kg) |
